Automated Silicone Glue Dispensing Robot for LED Street Light Assembly
Machine Description
LED street lights are designed for outdoor use, necessitating a high IP rating, such as IP67 or above, to withstand harsh environmental conditions. A critical step in their manufacturing process involves bonding the glass cover to the housing, and in some models, applying adhesive to secure the LED driver and PCB. The specific areas requiring glue application vary depending on the design specifications of different manufacturers.
The GDS Glue Dispensing Robot offers an economical yet highly practical solution for applying glue to LED street lights with precision and speed. Operators simply place the workpiece on the platform and program the movement path. Once set, the robot automatically dispenses the glue onto the designated areas of the street light, significantly enhancing production efficiency and reducing labor costs.
This glue dispensing robot features a large working range, making it suitable for street lights of various sizes. For smaller products, multiple units can be arranged on the platform simultaneously, allowing the machine to operate in a continuous cycle, further optimizing productivity.
Machine Features
- get higher assembly efficiency for different size induction LED street light
- get better bonding performance to guaranty longer worklife
- for small size panel, the operator can put more on the platform to let the dispensing head work in cycle
- equipped industrial PLC controller, for different glue with different settings ensure the best performance
- glue flow is stable without leakage and drawing realised by self-designed glue dispensing valve
- can fit for different brand silicone in 300ml package or 2600ml package
- equipped hand programming controller, easy to master the working logic
- the instructions can be copied and arrayed to get quick programming
- easy to operate and maintain for general employees
- floor stand design with wide working range(600*600MM), suitable for the biggest size panel in the market
- fast and accurate silicone application
Technical Parameters
| model | TD-6060 |
| MCU | 3 axis movement controller |
| programming | teaching programming |
| drive mode | Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way |
| Working Range(X*Y*Z) | 600*600*100mm |
| Max Moving Speed | MAX 500mm/sec |
| Repeat Accuracy | ±0.02mm |
| Program Memory Capacity | Program Memory Capacity |
| Dimension(L*W*H) | 700*650*1200mm |
| Working Power | AC220V/50～60Hz/150W |
| Working Air Pressure | 0.4 ~ 0.6Mpa(no condensation) |
| Working Temperature and Humidity | Temperature: 0 ~ 40℃ Humidity:20 ~ 90% |
Glue applicable
300ml package silicone or 2600ml package silicone

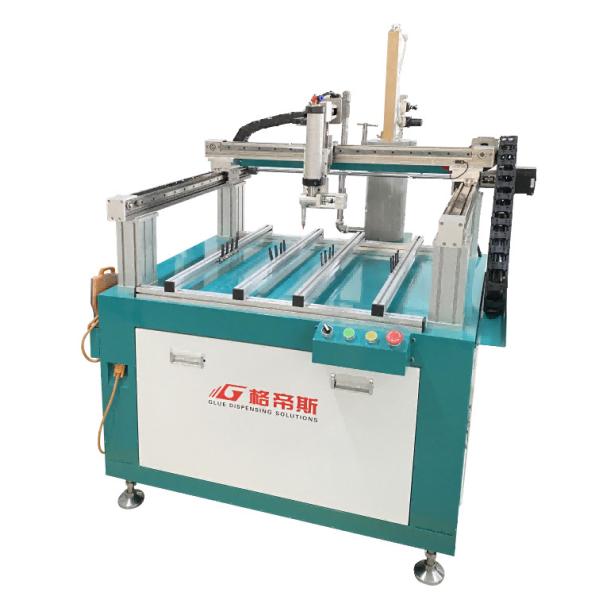

Machine Details
